Oilfiled Vacuum Degasser Solids Control Equipments

Oilfiled Vacuum Degasser Solids Control Equipments

Overview Product Parameters Product Description BOBAN ZCQ series Vacuum Degassers are able to service the needs of any a
SHARE

Description

Overview
Basic Info.
Model NO. BBZCQ270
Type Vacuum Degasser
Vacuum Degree -0.03~-0.045MPa
Main Power 37kw
Treatment Capacity 360m3/H
Tank Diameter 1000mm
Transport Package Pallet or Wooden Case
Specification 2250x1335x1723 / 89x53x68
Trademark BOBAN & OEM
Origin China
HS Code 8431431000
Production Capacity 50 PCS Per Month
Product Description
Product Parameters
ModelBBZCQ240BBZCQ270BBZCQ300BBZCQ360
Tank Diameter700mm800mm900mm1000mm
Treatment Capacity240m3/h270m3/h300m3/h360m3/h
Vacuum Degree-0.03~-0.045MPa
Transmission Ratio1.681.72
Degassing Efficiency≥95%≥95%≥95%≥95%
Main Power15kw22kw30kw37kw
Pump Power2.2kw3kw4kw7.5kw
Impeller Speed860r/min870r/min876r/min880r/min
Ex StandExdIIBt4 / IECEX / A-TEX
Weight1100kg1350kg1650kg1800kg
Dimension1750×860×1500mm2000×1000×1670mm2250×1330×1650mm2400×1500×1850mm
Product Description

BOBAN ZCQ series Vacuum Degassers are able to service the needs of any application. It is usually installed after the shakers. Each degasser effectively removes gases from gas-cut mud, thus ensuring that the proper mud weight is pumped down hole. In doing so, the degassers are able to aid in the prevention of potential blowouts. Unlike the traditional vacuum degasser, BOBAN ZCQ vacuum degaser is self-contained unit and monitored by level sensor to protect over suction of the fluids. The gas-cut mud is drawn into the degasser by a vacuum created by a regenerative vacuum without needing centrifugal pump. BOBAN degasser can act as a big agitator for the drilling mud, which helps te treatment for desander and desilter.

Detailed Photos

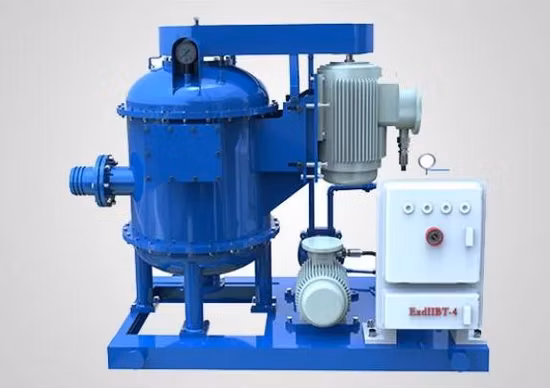

Oilfiled Vacuum Degasser Solids Control Equipments

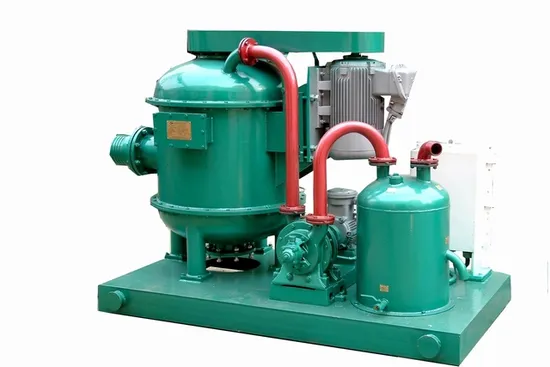

Oilfiled Vacuum Degasser Solids Control Equipments

Packaging & Shipping

Oilfiled Vacuum Degasser Solids Control Equipments

Oilfiled Vacuum Degasser Solids Control Equipments
