Solid Control Mud Shale Shaker Screen

Basic Info.

Model NO.	Mud Shale Shaker Screen
Transport Package	Standard Export Package
Trademark	SEACO
Origin	China
HS Code	84314310
Production Capacity	100

Product Description

Solid Control Mud Shale Shaker Screen

Product Description
Wave Type shale shaker screen are mostly applied to the shale shakers with Quick mounting handles. These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers, after compounded and bended, with a steel backing plate combined together. The wire cloth and bottom steel backing plate combined tightly, increase the filtering area 120% to 150% more than hookstrip flat screen, get an better effective. Accessary rubber plugs can be used to repair rips or tears. By doing this, we can cut down time and reduce the production costs. We can supply composite frame screens with mesh sizes ranging from 20 to 320.

Main Features

1.Wave Screen has large effective area, and drilling fluid is handle in high-efficiency by using it.2.Each wire cloth in the sieving screen has different meshes, and accurate collocation can make the screen has better effect.3.Stainless steel wire cloth is wave, and closely holds to metal support plank together. The effective area is up to 125% to 150% of the flat screen with the same specification, so as to improve of handling capacity. Parameter

type	Meshes	Dimension	Matched shaker	weightkg
GMK-1	16-325	585×1165mm	SWACO	12
			MON900SE
GMK-2	16-325	635×1253mm	BRANDT	13.5
			BL-50
GMK-3	16-325	913×650mm	BRANDT	12.5
			VSM-300
GMK-4	16-325	720×1220mm	KEMTRON	17
			KTL48 Series
GMK-5	16-325	712×1181mm	SF300	17

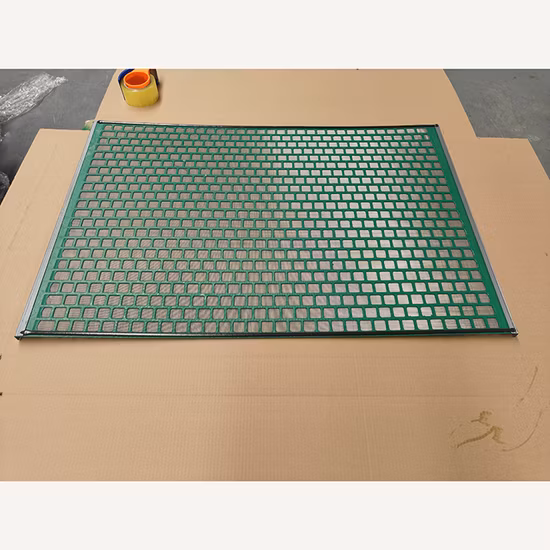

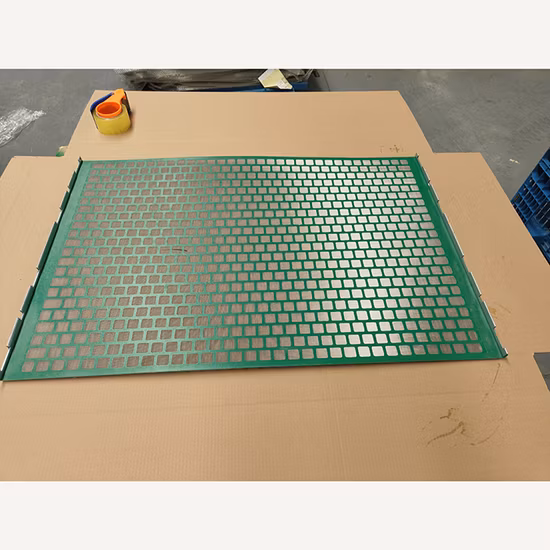

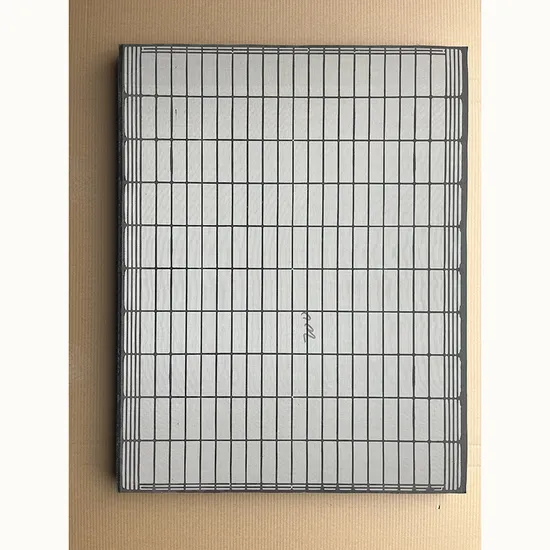

Packing Photo:

Solid Control Mud Shale Shaker Screen
